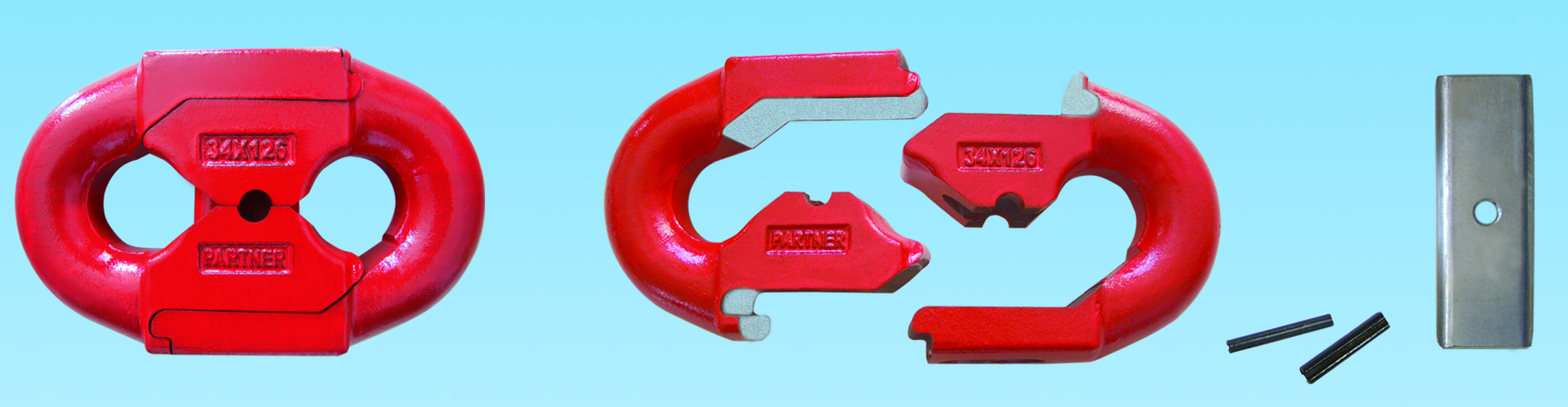

K齿型接链环(水平面和垂直面都能使用，优先选用水平连接)

K齿型接链环符合DIN22258 Part1 1983标准,高于国内MT/T  99-1997标准，在制造过程中选择了富含Cr、Ni、Mo合金元素的高合金钢和多重热处理工艺，以确保其与配套链轮的配合，安全运行，K齿型接链环表面经过特殊防腐处理，延长了使用寿命。

K齿型接链环垂直安装使用时，一定要注意装配方向，保证上方箭头与传动方向一致。

K-tooth Connector (for vertical and horizontal use,horizontal link connector is preference)

The K-tooth connector comply to the standard DIN 22258 part I ,which exceed the requirements in China Standard MT/T 99-1997 .The tensile and fitigue performance is particularly impressive and has been achieved by careful selection of raw material include Cr.Ni and Mo and heat treatment during the manufacturing process .The perfect engagement with sprocket either in Horizontal or Vertical has been achived .The Surface of K-tooth connector have been treated through anti-corrosion process to expand its work life.

Please be aware of the fitting direction when assembling for vertical use, keep the top arrow direction same with the transmission direction.

梯齿环机械性能

Mechanical properties of the T-tooth Connector

疲劳试验最小40000次；平均应力150N/mm2;振幅±100N/mm2 ;KV冲击试验最小55J（典型的70J）

参考DIN22258：2003第1部分实验方法和程序

Fatigue Test-40000 cycle min.Mean stress 150N/mm2;Amplitude ±100N/mm2 Impact KV Test -55J.min (70 Typical)

Refer to DIN22258 :2003 Part1 for verification methods and procedures.

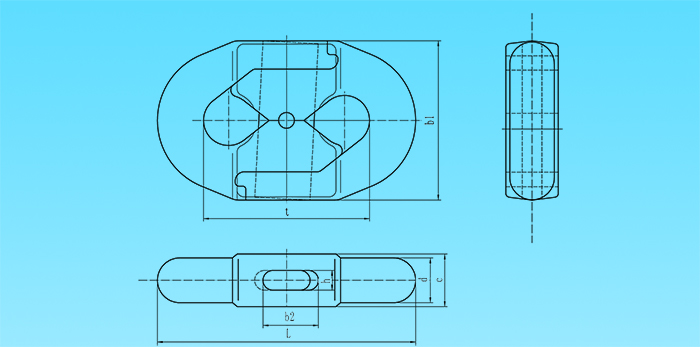

尺寸（Size）

安装与维护

K齿型接链环安装说明书提供了安装和维护的正确方法。

*定期检查磨损和损坏

*每三个月或完成100万吨过煤量进行检查（如果用于转载机需每月检查一次）

*不要在两个接链环中插入其它部件

Assembly and Maintenance

An instruction leaflet is supplied with each K-Tooth connector which gives guidance on correct assembly and maintenance.

.Regularly check for wear or damage and free from dust.

.Fully examine every 3 months or IM tonnes conveyed whichever is the sooner(For BSL use,examine montly)

.Do not interchange components between connectors.
